   HOME>>Exhibition Center
Tower crane--Shandong Hongda Group International Trade Corporation
Hoisting Machinery >> Tower crane >> Tower crane
Tower crane

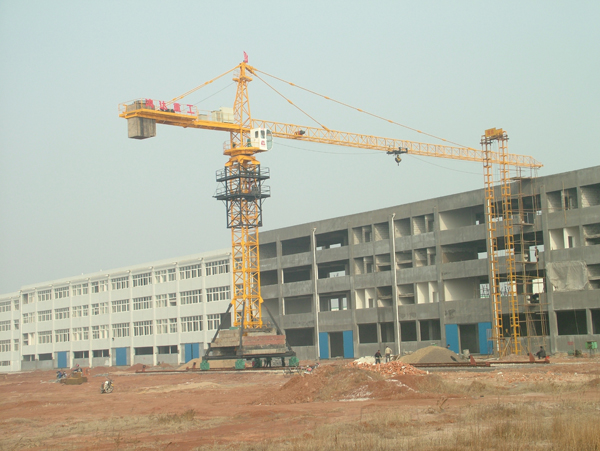

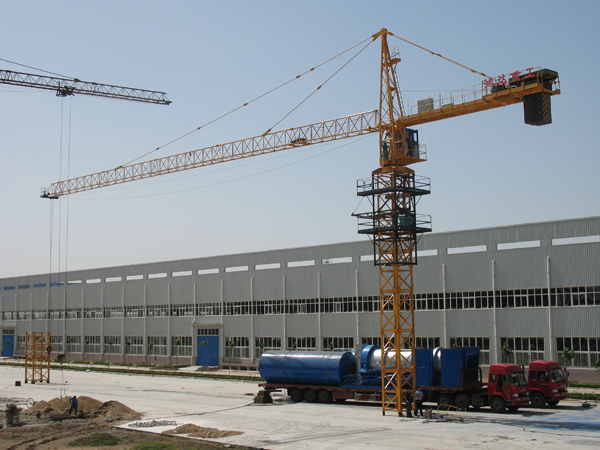

Tower cranes picture Tower cranes picture Mobile Tower cranes
Trolley travel mechanism Winding mechanism Slewing mechanism
Cab Cab # shaped beam with no ballast
Pictures of mast series Counter-jib QTZ40 Crane’s jib

Cross-beam slanting sup portpole with ballast

Cross-beam slanting sup portpole with no ballast



Outer sleeve frame

Travel trolley Pickling and phosphorization







QTZ series of tower cranes

TIELISHI series of tower cranes are one of HONGDA’s leading products. They cover a large working scope from QTZ31.5 to QTZ500with travel range varying from 30m to 80m, have multiple working methods and apply to many purposes. The series of tower crane has a horizontal jib frame, trolley travelling, hydraulic self-climbing, original mechanism, and a desirable shape. They can operate reliably with all safety devices well-equipped and have an improved working speed, a good speed control property, and a smooth and efficient working, which can widely apply to high-rise hotel, resident houses, high-rise industry buildings, large-span factory buildings, large chimneys and other high-tower buildings. TIELISHI series of tower cranes have been awarded many honours like SHANDONG FAMOUS BRAND. Quality first is not only a slogan, but has rooted in HONGDA PEOPLE’s heart deeply. Classic after-sale service will remove all worries from your purchase of our products.

Track traveling type tower crane

Track type tower crane is one of new products of our company. It’s a crane whose traveling mechanism is mounted on guide track basing on the cross beam of stationary tower crane .













Main Technical Parameters of QTZ Tower Crane

    Model



Parameters

QTZ500

(8031)

QTZ315

(7035)

QTZ300

(7031)

QTZ200

(7020)

QTZ160

(6516)

QTZ125A(6516)(5518)

QTZ100A

(5515)

QTZ80A

(6010)(5512)

Tip load capacity(T)

3.1

3.5

3.1

2.0

1.6

1.6/1.8

1.5

1.0/1.2

Max .Radius (M)

80

70

70

70

65

60

55

60

Independent Height(M)

77

53

50

50

50

46

46

46

Max. Lifting Capacity(T)

25

16

12

12

10

8

8

8

Max. Height(M)

312

301

221

200

200

201

21

201

Wall-attached Frame

11

11

8

7

6

6

6

8

Main Material

L1802x18 Angle steel welding

1402x16

Angle steel welding



1352x12        Square steel tube

Standard Mast Section Dimension

2.45x

2.45x5

2.083x

2.083x3

2.083x

2.083x3

2.083x

2.083x3

1.935x

1.935x2.8

1.835x

1.835x2.5

1.835x

1.835x2.5

1.835x

1.835x2.5

Hoisting Speed(m/min)

1-102

0-120

0-102

0-102

100/50/10

100/50/8.5

100/50/8.5

80/40/10

Slewing Speed(r/min)

0-0.7

0-0.7

0-0.7

0-0.7

0-0.60

0-0.65

0-0.65

0-0.6

Traveling Speed(m/min)

0-100

0-80

0-80

0-80

0-60

0-60

0-60

0-60

Climbing Speed(m/min)

0.5

0.46

0.46

0.46

0.4

0.5

0.5

0.69





Model







Parameters

QTZ63B

(5610)

(5013)

QTZ63C

(5211)5013)

QTZ63F

5810

QTZ50

(5010)

QTZ40

(4708) (4510)

QTZ40A

(4708)

QTZ40B

(4708)

QTZ31.5

(3883)

(4075)

(4264)

Tip load capacity(T)

1.0/1.3

1.1/1.3

1.0

1.0

0.8/1.0

0.8

0.8

0.8/0.7/0.6

Max .Radius (M)

56

52

58

50

47

47

47

42

Independent Height(M)

41

40

41

34

32.5

29

34

30

Max. Lifting Capacity(T)

6

6

6

5

4

4

4

3

Max. Height(M)

161

140

161

139

135

120

136

100

Wall-attached Frame

6

6

7

7

5

6

6

5

Main Material

1352x10Square steel tube

Reinforcing mast section

1352x12

160x14 Angle steel

Reinforcing mast section

160x16

1352x10

Square steel tube

Reinforcing mast section

1352x12

160x12

Angle steel

140x12

Angle steel

160x12

Angle steel

125x10

Angle steel

Standard Mast Section Dimension

1.835x

1.835x2.5

1.615x

1.615X2.5

1.835x

1.835x2.5

1.5x1.5

X2.5

1.5x1.5

X2.5

1.5x1.5

X2.2

1.5x1.5

X2.4

1.5x1.5

X2.4

Hoisting Speed(m/min)

80/40/10

80/40/10

80/40/10

58/29/8

70/35/9

70/35/9

70/35/9

57/26/5

Slewing Speed(r/min)

0-0.62

0-0.62

0.62

0-0.62

0-0.7

0-0.75

0-0.7

0-0.6

Traveling Speed(m/min)

40/20

40/20

25/12.5

0-25

42/21

42/21

25/12.5

42/21

Climbing

Speed(m/min)

0.6

0.6

0.6

0.5

0.5

0.5

0.5

0.7
